SLIK K-20

• Supports up to 20kg
• Precision rack-and-pinion column
• Adjustable leg brace system
• Anti-slip rubber feet
• CNC-machined mounting platform

Specification

Heavy-duty equipment tripod with 20kg capacity, rack-and-pinion column, and superior stability for industrial and surveying applications.

• Supports up to 20kg
• Precision rack-and-pinion column
• Adjustable leg brace system
• Anti-slip rubber feet
• CNC-machined mounting platform

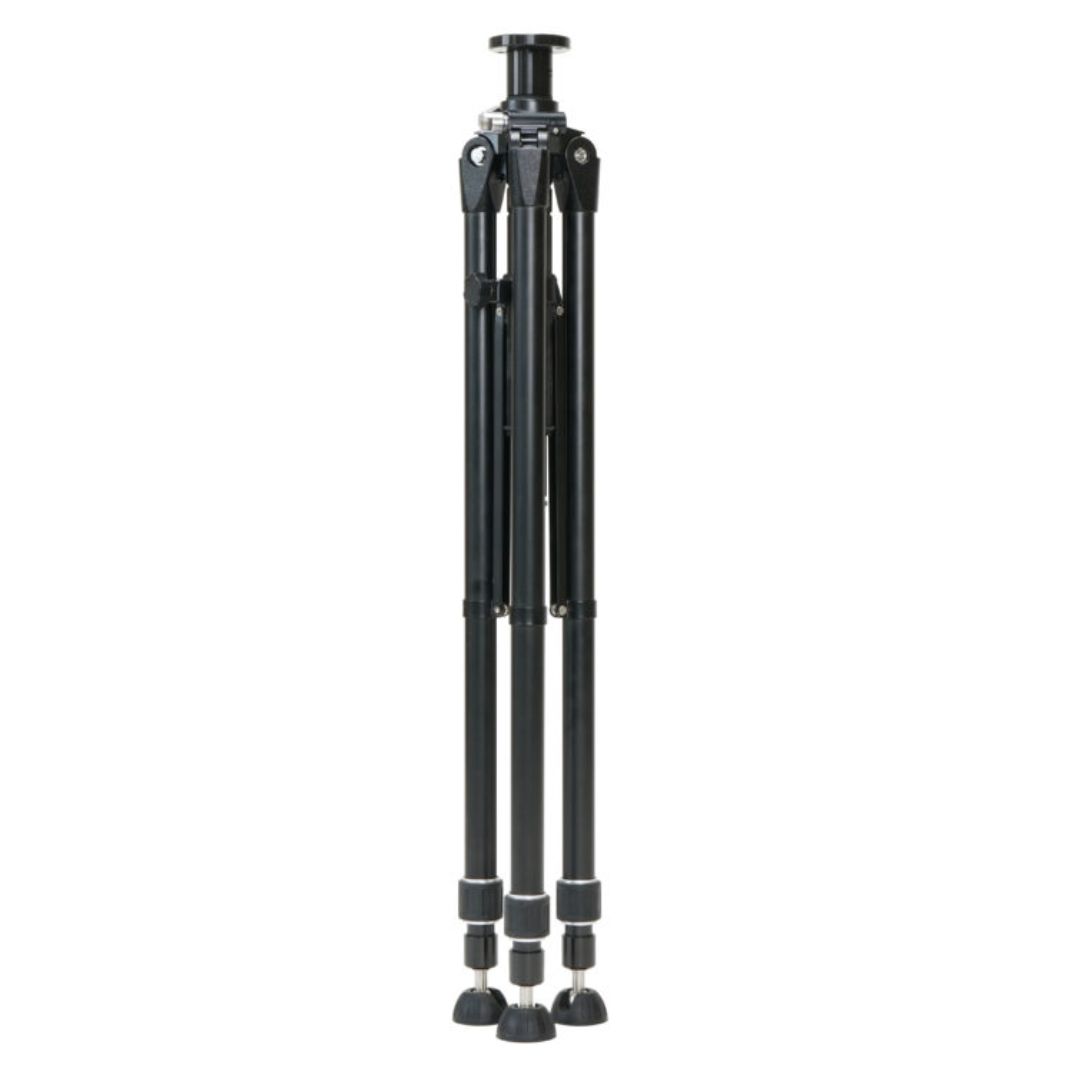

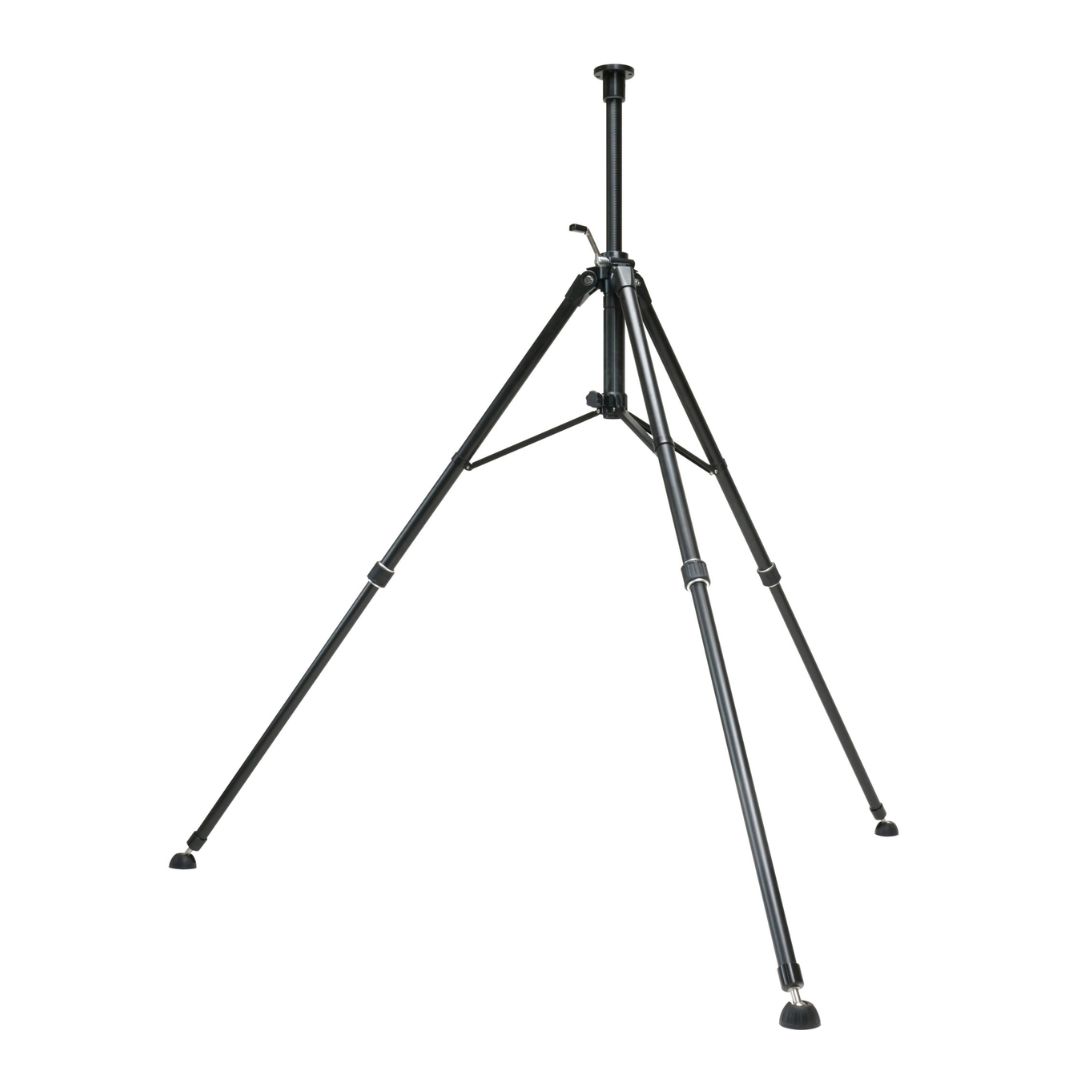

The SLIK K-20 is a heavy duty equipment tripod engineered to provide exceptional stability for professional surveying, construction, industrial inspection, and precision measurement applications. Designed to support equipment weighing up to 20kg, it is ideal for laser trackers, laser scanners, construction lasers, and measurement devices. Despite its high load capacity, it weighs under 3kg for easy transport. Two-stage telescopic legs with twist locks, a precision rack-and-pinion center column, adjustable leg brace system, anti-slip rubber feet, and a CNC-machined mounting platform provide reliable support and precise positioning in demanding environments.

Folded Length830 mm
Maximum Operating Height1,395 mm
Minimum Operating Height680 mm
Maximum Center Column Extension265 mm
Weight2,950 g
Leg Lock TypeTwist Lock
Leg TipRubber Feet
How To Mount EquipmentM6 Screw
Number of Leg Sections2
Shape of Leg Pipe/Tube
Diameter of the First Upper Leg28 mm
Type of Center Column ElevationRack & Pinion type
